Overview - Side Window

WARNING:

When removing a window, always wear protective eyewear and leather gloves.

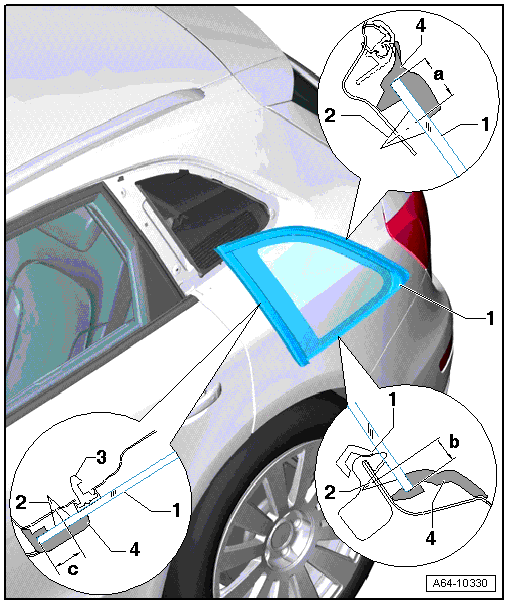

Fig 1: Identifying Side Window Assembly
GWWA64-10330Courtesy of AUDI OF AMERICA, LLC
  1. Side Window
    NOTE:

    For vehicles with high gloss, the side panel trim molding must be removed first and then roof trim molding must be unclipped in this area.

  2. Adhesive Bead
    NOTE:

    Apply the adhesive sealing material directly next to the molding around the antenna connections.

    • Dimension -a- = 14 mm
    • Dimension -b- = 14 mm
    • Dimension -c- = 8.5 mm
  3. Centering Pin
    • is cut during removal.
  4. Side Window Molding
    • No replacement part
    • Must not be damaged in field of vision.
