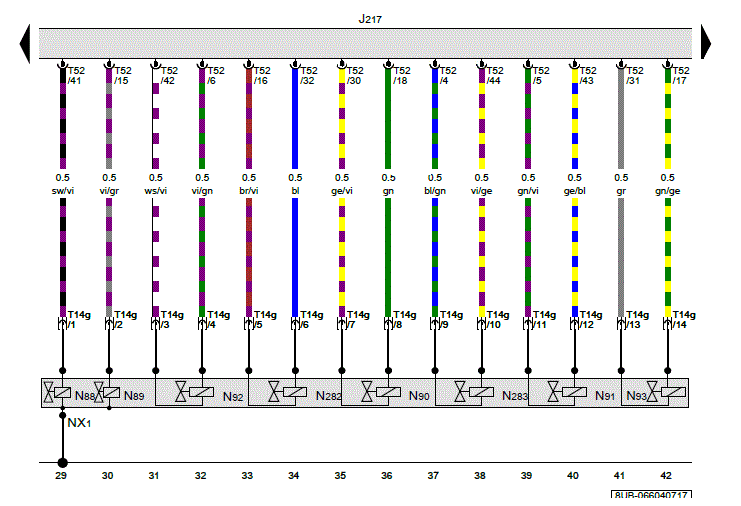

Transmission Control Module
 Courtesy of AUDI OF AMERICA, LLC
|
J217
Transmission control module
NX1
Transmission
N88
Solenoid valve 1
N89
Solenoid valve 2
N90
Solenoid valve 3
N91
Solenoid valve 4
N92
Solenoid valve 5
N93
Solenoid valve 6
N282
Solenoid valve 9
N283
Solenoid valve 10
T14g
14-pin connector
T52
52-pin connector
