Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING: Removing
-- Remove the fuse panel C and set aside with the wires still attached. Refer to Fuse Panel C -SC-, REMOVING AND INSTALLING .
-- If equipped, remove the relay carrier from the vehicle electrical system control module and with the lines still connected and move it to the side. Refer to RELAY CARRIER ON VEHICLE ELECTRICAL SYSTEM CONTROL MODULE, REMOVING AND INSTALLING .

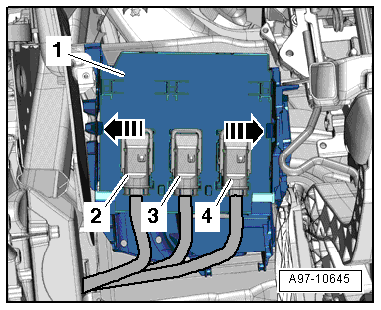

-- Disconnect the connectors -2 through 4-.
-- To disconnect the connector, press the tab -1-, turn the retaining bracket in the direction of -arrow- and remove the connector.
-- Release the springs in the direction of -arrows- and remove the vehicle electrical system control module -1- from the base mount downward.
