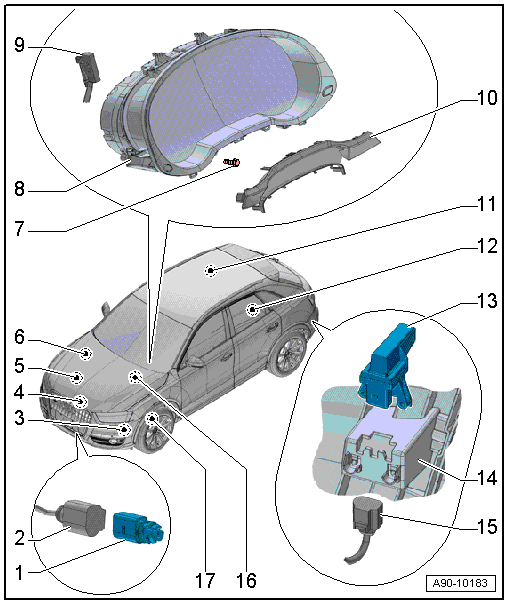

Overview - Instrument Cluster
- Outside Air Temperature Sensor -G17-
- Removing and installing. Refer to OUTSIDE AIR TEMPERATURE SENSOR, REMOVING AND INSTALLING .
- Connector
- For Outside Air Temperature Sensor -G17-
- Windshield Washer Fluid Level Sensor -G33-
- Removing and installing. Refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING .
- Oil Level Thermal Sensor -G266-
- Removing and installing. Refer to Oil Level Thermal Sensor -G266-, REMOVING AND INSTALLING .
- Oil Pressure Switch
- Removing and installing. Refer to Oil Pressure Switch -F22-, REMOVING AND INSTALLING .
- Engine Coolant Level Warning Switch -F66-
- Bolt
- 3 Nm
- Quantity: 2
- Instrument Cluster
- With Instrument Cluster Control Module -J285-
- Removing and installing. Refer to INSTRUMENT CLUSTER WITH Instrument Cluster Control Module -J285-, REMOVING AND INSTALLING .
- Multi-pin connector pin assignment. Refer to INSTRUMENT CLUSTER MULTI-PIN CONNECTOR CONTACT ASSIGNMENT .
- Connector
- For instrument cluster
- Gap Cover
- Removing and installing. Refer to Instrument Cluster Gap Cover, Removing And Installing .
- Fuel Level Sensor -G-
- Connector assignment. Refer to Fuel Level Sensor -G- CONNECTOR ASSIGNMENT .
- Removing and installing. Refer to Fuel Level Sensor -G-, Removing And Installing .
- Fuel Level Sensor 2 -G169-
- Connector assignment. Refer to Fuel Level Sensor 2 -G169- CONNECTOR ASSIGNMENT .
- Removing and installing. Refer to Fuel Level Sensor 2 -G169-, Removing And Installing
- Radio Frequency Controlled Clock Receiver -J489-
- Removing and installing. Refer to RADIO FREQUENCY CONTROLLED CLOCK RECEIVER, REMOVING AND INSTALLING .
- Mount
- Integrated in the bumper cover
- Connector
- For Radio Frequency Controlled Clock Receiver -J489-
- Brake Fluid Level Warning Switch -F34-
- Removing and Installing. Refer to BRAKE FLUID GENERAL INFORMATION .
- Left Front Brake Pad Wear Sensor -G34-
- Removing and installing. Refer to Front Brakes .
