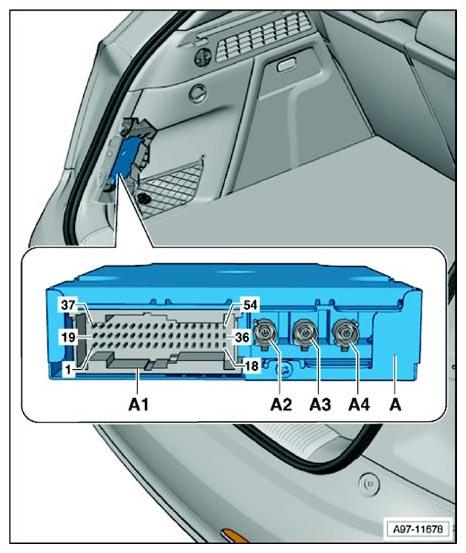

Rear View Camera System Control Module Connector End View (J772, T54a, T2df, T2v)
Behind side trim, in left luggage compartment.
Courtesy of AUDI OF AMERICA, LLC
| A |
Rear View Camera System Control Module -J772- |
| A1 |
54-Pin Connector -T54a-, light-blue |
| A2 |
Not used |
| A3 |
Double Connector -T2df-, leaf-green |
| A4 |
Double Connector -T2v-, bluegrey |
