Instrument Cluster Control Module Connector End View (J285, T32)
Instrument Cluster Control Module Connector End View (J285, T32)
In instrument panel.

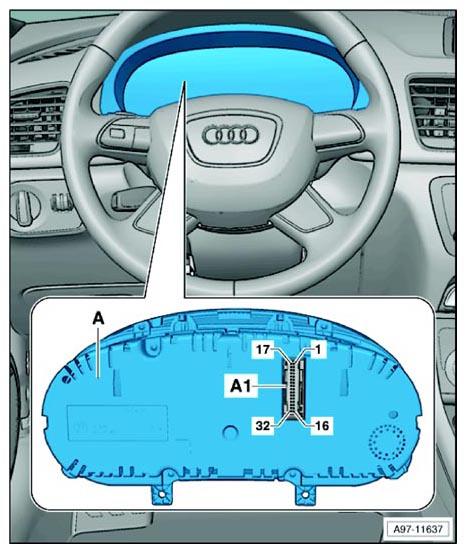

Fig 1: Instrument Cluster Control Module Connector End View (J285, T32)
Courtesy of AUDI OF AMERICA, LLC
A
Instrument Cluster Control Module -J285-
A1
32-Pin Connector -T32-, blue
