Engine Number/Engine Specifications
Engine Number

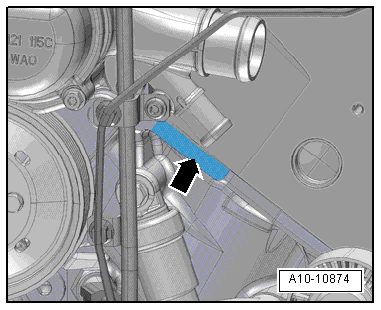

- The engine serial number ("engine code" and "serial number") is located on the front of the cylinder block on the left side -arrow-.
- Engine codes beginning with "C" are four letters long.
- The first three positions of the engine code stand for displacement and the mechanical engine structure. They are stamped in the cylinder block, including the serial number.
- The fourth position represents the engine output and torque and is dependent on the engine control module.
NOTE:
The four digit engine code is on the type plate (market-specific), vehicle data label and engine control module.
Component locations of the type plate (market-specific) and vehicle data label.
