NOX Sensor Control Module, Engine Control Module, NOX Sensor Control Module 2: Notes

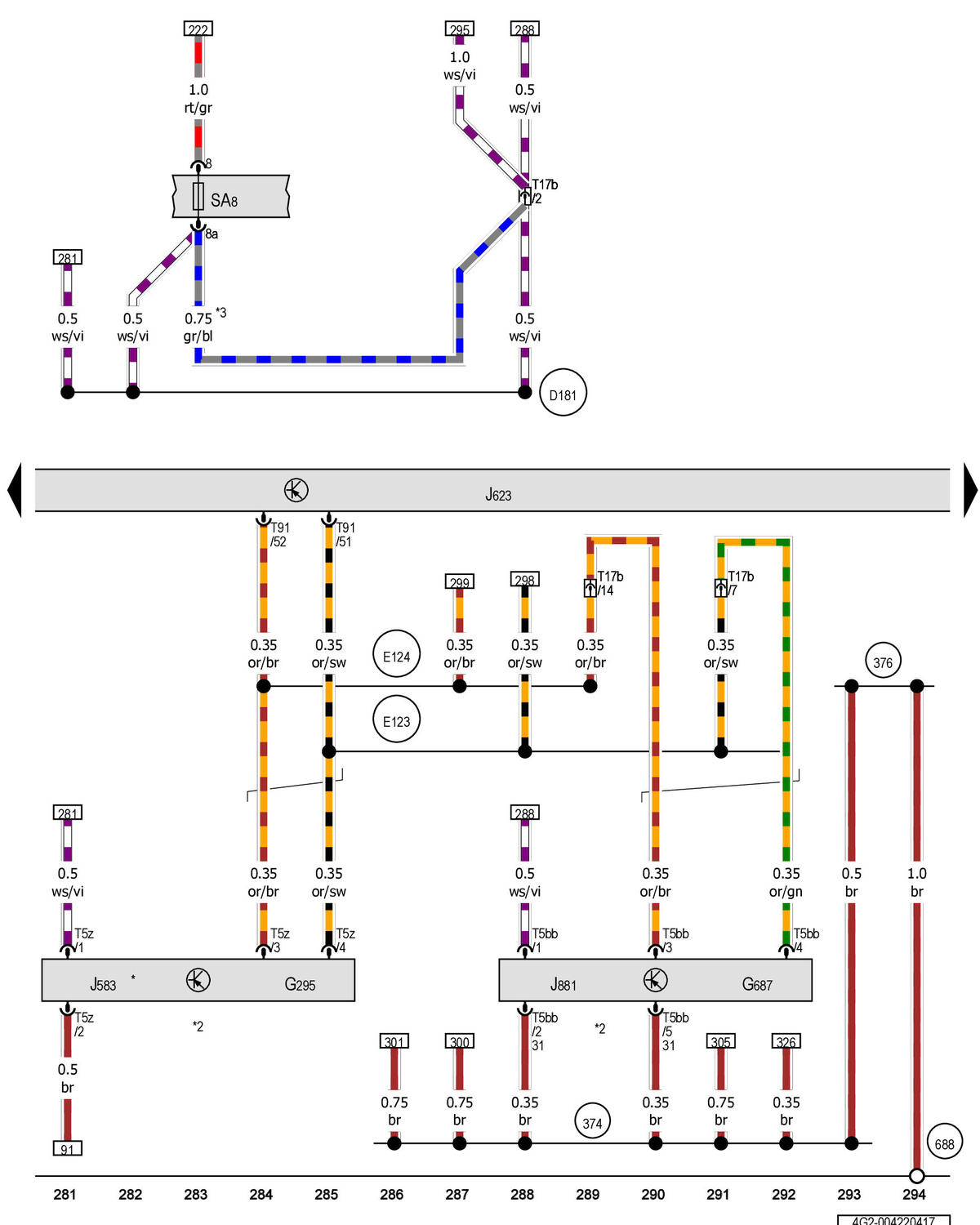

GWW4G2-004220417

Courtesy of AUDI OF AMERICA, LLC

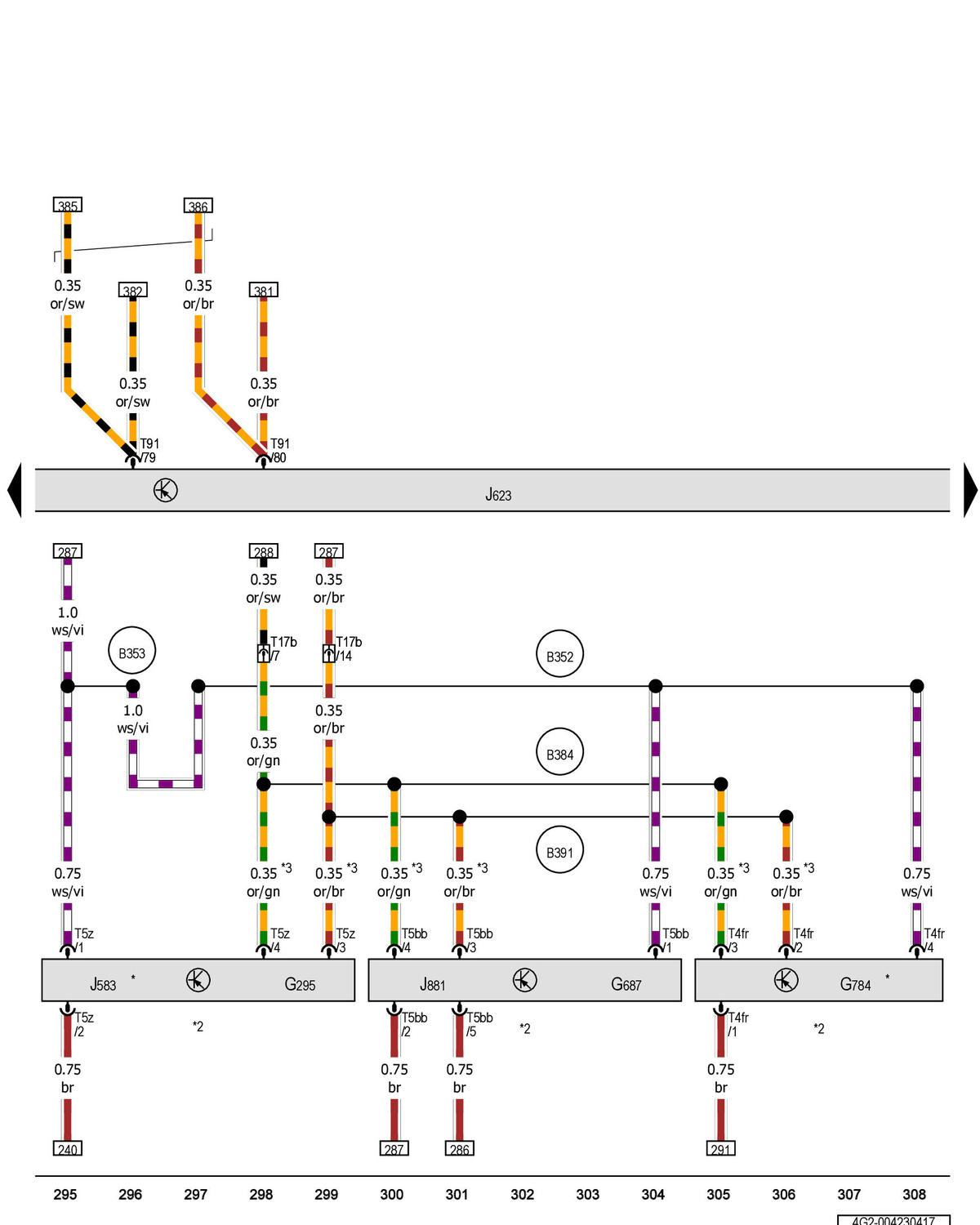

GWW4G2-004230417

Courtesy of AUDI OF AMERICA, LLC
