Right Engine Mount

WARNING: This page is about a different variant/trim than selected.

Courtesy of AUDI OF AMERICA, LLC

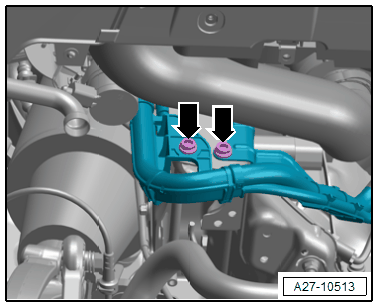

-- Remove the bolts -arrows- on the bracket for the B+ and Ground (GND) cable on the right longitudinal member.

-- Push the wire slightly to the side.

Continued for Both Sides

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -1- and -arrows- for the engine mount.

-- Move the engine mount retaining plate to the side.

-- Remove the engine mount.

NOTE:

Ignore item -2-.
