Engine, Supporting In Installed Position
Special tools and workshop equipment required
- Engine Support Bridge: 10-222A
- Engine Support - Bracket w/Spindle and Hook: 10-222A/10
- Engine Support Bridge - Engine Support 28: 10-222A/28
- Engine Support Bridge - Engine Support 29: 10-222A/29
- Square Pipe from the Engine Support - Basic Set: T40091 (quantity: 2)
- Rail with Holes from the Engine Support - Basic Set: T40091
- Moveable Joint from the Engine Support - Basic Set: T40091 (quantity: 2)
- Moveable Joint from the Engine Support - Supplement Kit: T40093A (quantity: 2)
- Mount from the Engine Support - Supplement Kit: T40093A
-- Remove the windshield wiper arm. Refer to WIPER ARMS, REMOVING AND INSTALLING .
-- Remove the left plenum chamber cover. Refer to PLENUM CHAMBER COVER .

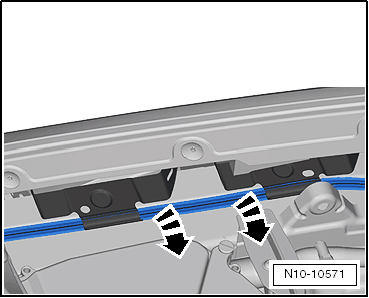

-- Remove the hood release cable from the retainers in direction of -arrows- and move it to the side.

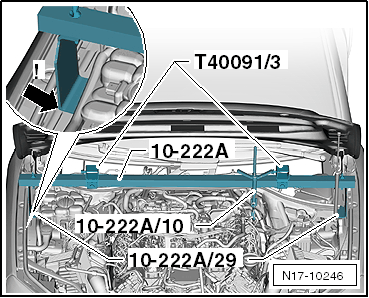

-- Push the Engine Support - Basic Set - Moveable Joints: T40091/3 and Hook: 10-222A/10 onto the square pipe of the Engine Support Bridge: 10-222A .
-- Mount the Engine Support Bridge - Engine Support 29: 10-222A/29 onto the square pipe.
Do not place the engine support bridge on the metal tabs for the hood release cable.
-- Position the engine support bridge between the retaining tabs for the hood release cable as illustrated.
-- Push the Engine Support - Supplement Kit - Moveable Joint: T40093/4 and Engine Support Bridge - Engine Support 28: 10-222A/28 onto the Engine Support - Basic Set - Square Pipe: T40091/1 .

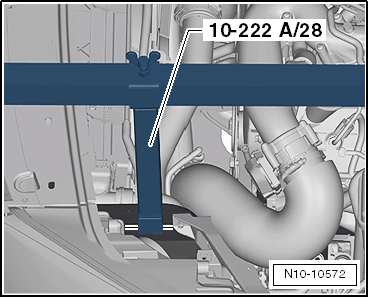

-- Place the Engine Support Bridge - Engine Support 28: 10-222A/28 on the longitudinal member and slide the Engine Support - Basic Set - Square Pipe: T40091/1 into the Engine Support - Basic Set - Moveable Joints: T40091/3 .
-- Repeat the procedure on the other side of the vehicle.

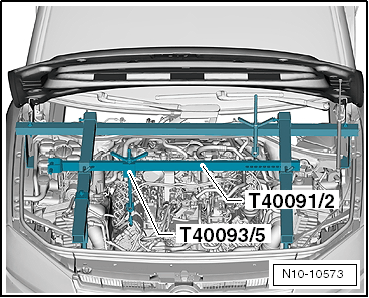

-- Slide the Engine Support - Basic Set - Rail with Holes: T40091/2 through the Engine Support - Supplement Kit - Moveable Joint: T40093/4 on one side.
-- Slide the Engine Support - Supplement Kit - Mount: T40093/5 onto the Engine Support - Basic Set - Rail with Holes: T40091/2 and then the rail with holes into the moveable joint on the other side.
-- Install the locking pin and secure it with a splint.
-- Tighten all threaded connections on the engine support bridge hand-tight.
-- Attach the hooks on the spindle to the lifting eyes on the engine and hold the engine in its installed position.
