Engine Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg and 2013 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

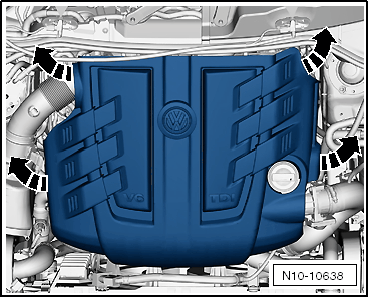

-- Remove the engine cover first toward the front using both hands in direction of -arrows- and then to the rear (toward the plenum chamber bulkhead).

GWWN10-10638Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
