Special Tools

Special tools and workshop equipment required

Engine Support Bridge:10-222A

Fig 1: Engine Support Bridge 10-222A
Courtesy of AUDI OF AMERICA, LLC
Lifting Tackle:3033

Fig 2: Lifting Tackle (3033)
Courtesy of AUDI OF AMERICA, LLC
Used Oil Collection and Extraction Unit:SMN372500

Fig 3: Identifying Used Oil Collection And Extraction Unit
Courtesy of AUDI OF AMERICA, LLC
Socket T30:T10405

Fig 4: Identifying Socket T30
Courtesy of AUDI OF AMERICA, LLC
Engine Support - Basic Set:T40091

Fig 5: Engine Support - Basic Set T40091
Courtesy of AUDI OF AMERICA, LLC
Engine Support - Supplement Kit:T40093A with :T40093/7 , and :T40093/8

Fig 6: Engine Support - Supplement Kit T40093A
Courtesy of AUDI OF AMERICA, LLC
Clutch Module Transportation Lock:T40170

Fig 7: Clutch Module Transportation Lock T40170
Courtesy of AUDI OF AMERICA, LLC
Wrench - 21mm:T40263

Fig 8: Identifying Wrench - 21mm
Courtesy of AUDI OF AMERICA, LLC
Crankshaft Turning Tool:T40272

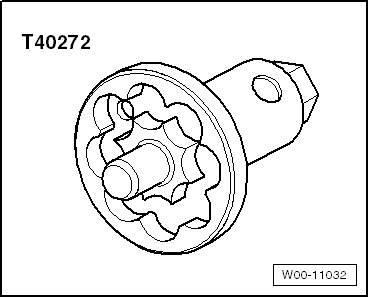

Fig 9: Identifying Crankshaft Turning Tool T40272
Courtesy of AUDI OF AMERICA, LLC
Torque Wrench 1332 Insert - Ring Wrench - 16mm:VAG1332/14

Fig 10: Identifying Ring Spanner Insert AF 16 VAG 1332/14
Courtesy of AUDI OF AMERICA, LLC
Step Ladder:VAS5085
Engine and Transmission Holder:VAS6095A with Engine/Transmission Holder - V8 Engine Bracket:VAS6095/1-13

Fig 11: Identifying Engine and Gearbox Bracket VAS6095A
Courtesy of AUDI OF AMERICA, LLC
Shop Crane:VAS6100

Fig 12: Identifying Shop Crane
Courtesy of AUDI OF AMERICA, LLC
Lift Arm Extension:VAS6101

Fig 13: Identifying Lift Arm Ext./Workshop Hoist VAS 6101
Courtesy of AUDI OF AMERICA, LLC
Engine Bung Set:VAS6122

Fig 14: Engine Bung Set
Courtesy of AUDI OF AMERICA, LLC
Scissor Lift Table:VAS6131B with Scissor Lift Table - Audi Set:VAS6131/10 , Scissor Lift Table - A8 Set :VAS6131/11 and Scissor Lift Table - Q7 Set :VAS6131/13

Fig 15: Scissor Lift Table (VAS6131B)
Courtesy of AUDI OF AMERICA, LLC
Shop Crane - Drip Tray:VAS6208

Fig 16: Identifying Drip Tray
Courtesy of AUDI OF AMERICA, LLC
Hose Clip Pliers:VAS6340

Fig 17: Hose Clip Pliers VAS6340
Courtesy of AUDI OF AMERICA, LLC
Hose Clip Pliers:VAS6362

Fig 18: Hose Clip Pliers
Courtesy of AUDI OF AMERICA, LLC
Engine and Gearbox Jack:VAS6931

Fig 19: Engine and Gearbox Jack VAS6931 or VAG1383A
Courtesy of AUDI OF AMERICA, LLC
