Left/Right Rear Treble Speaker -R14- / -R16-, Removing And Installing: Removing

-- Remove the lower left B-pillar trim panel, refer to Passenger Compartment Trim .

-- Release and disconnect the connector -2- from the Left Rear Treble Speaker -R14- -1-.

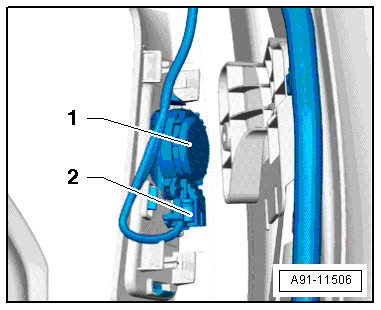

Fig 1: Identifying Connector -2- From Left Rear Treble Speaker -R14- -1-
GWWA91-11506Courtesy of AUDI OF AMERICA, LLC

-- Press the Left Rear Treble Speaker -R14- -1- out of the tabs and remove it from the trim.
