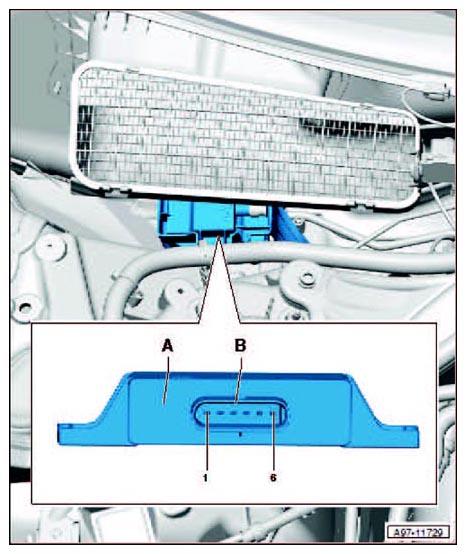

Structure-Borne Sound Control Module Connector End View (J869, t6bw)
| A | Structure-Borne Sound Control Module -J869- |
| B | 6-Pin Connector -T6bw-, black |
| -T6bw- (B) | Designation |
| 1 | Structure-Borne Sound Actuator -R214- |
| 2 | Structure-Borne Sound Actuator -R214- |
| 4 | Terminal 31, to (366) Ground Connection 1 (in main wiring harness) (44) Ground Connection (on left lower A-pillar) |
| 5 | CAN-Bus powertrain, Low (B390) Powertrain CAN-Bus Low Connection 1 (in main wiring harness) Data-Bus On Board Diagnostic Interface -J533- |
