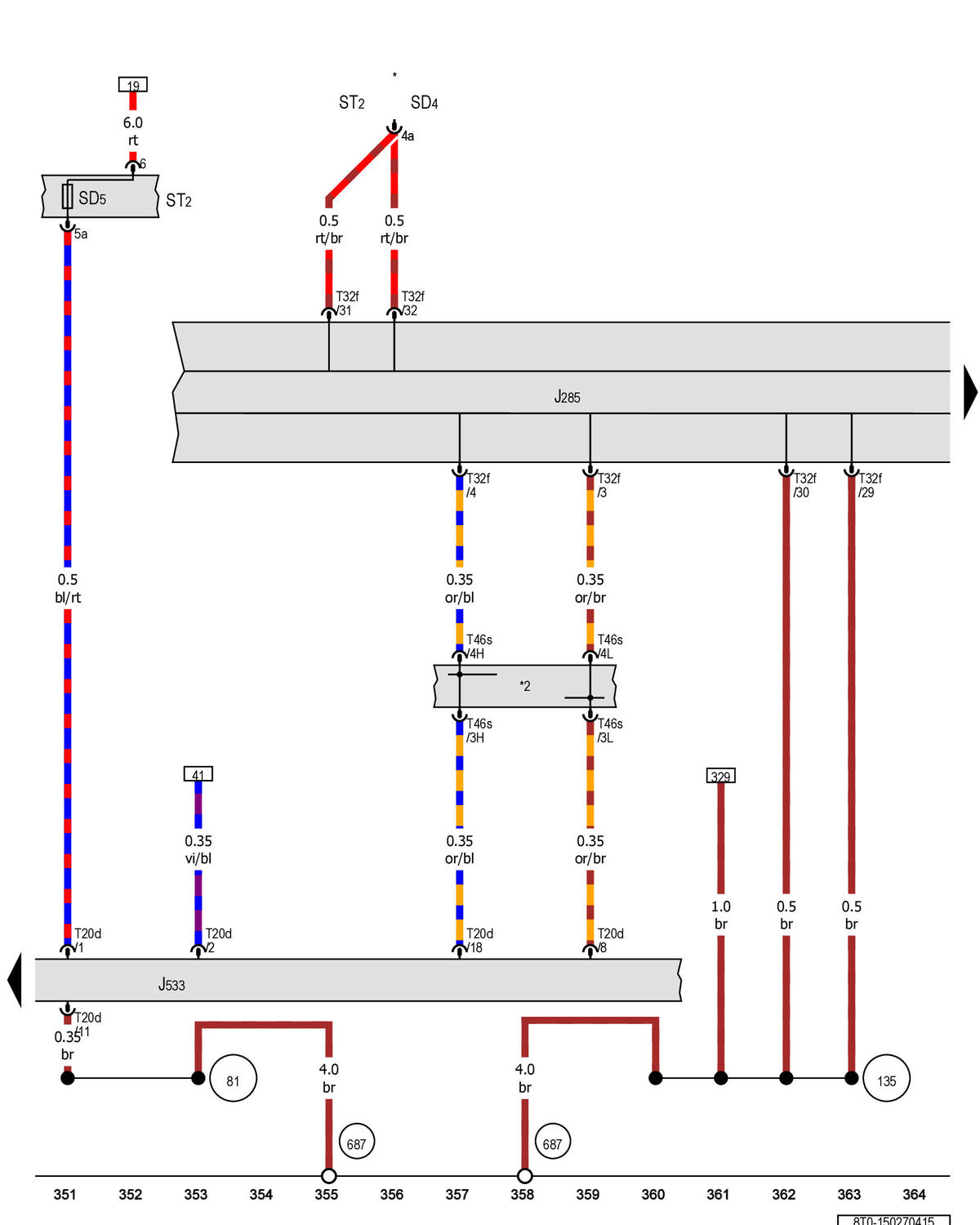

Instrument Cluster Control Module, Data Bus On Board Diagnostic Interface: Notes

GWW8T0-150270415

Courtesy of AUDI OF AMERICA, LLC
