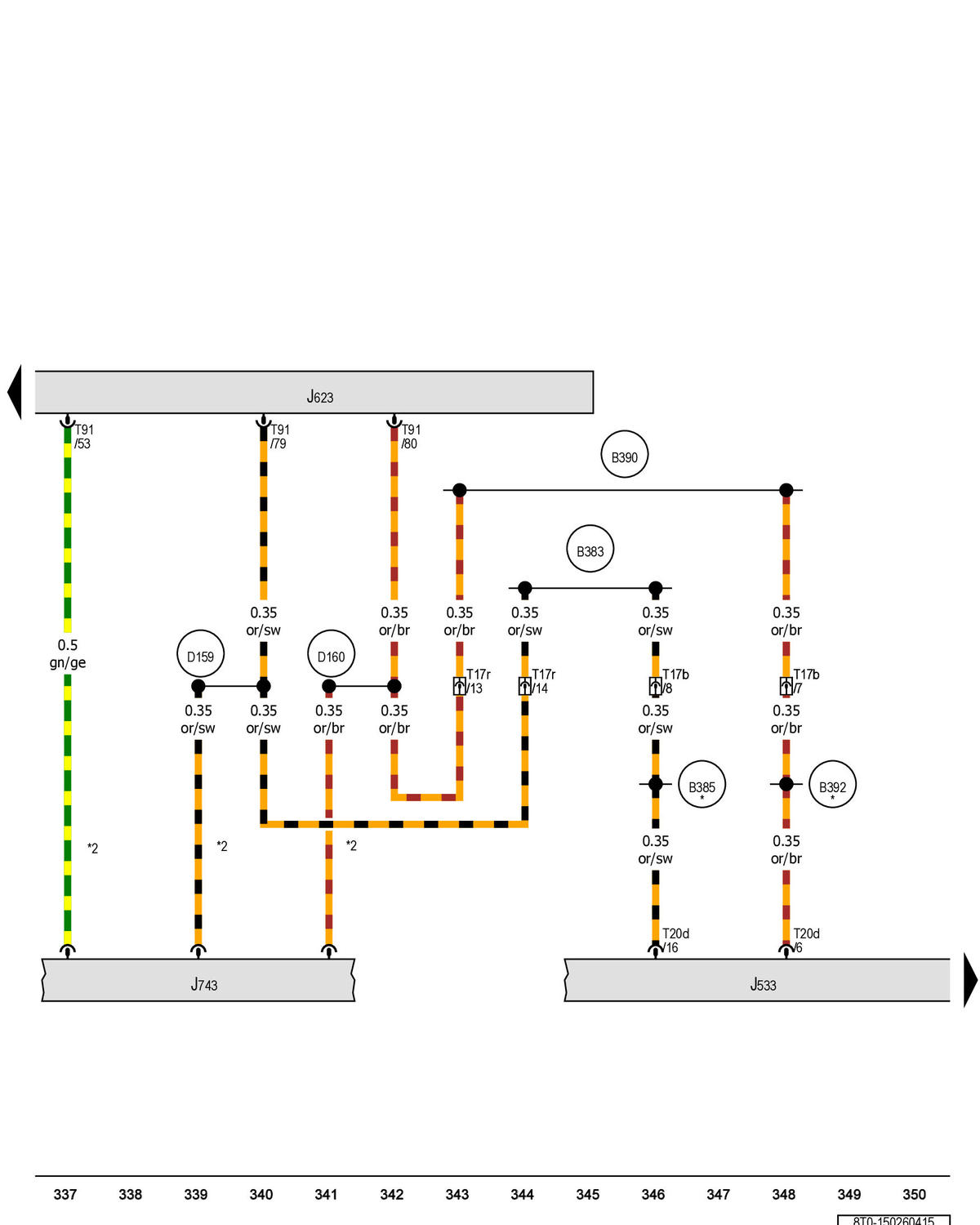

Data Bus On Board Diagnostic Interface, Engine Control Module, DSG Transmission MECHATRONIC: Notes

GWW8T0-150260415

Courtesy of AUDI OF AMERICA, LLC
