Special Tools

Fig 1: Identifying Special Tools -- Transmission, Transporting

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Engine Sling2024A
• Engine ShackleT10059
• Shop CraneVAS6100

Fig 2: Special Tools And Workshop Equipment Required

Courtesy of AUDI OF AMERICA, LLC

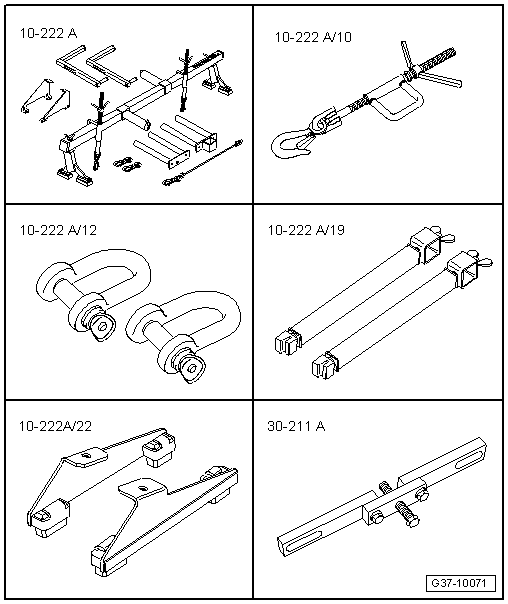

Special tools and workshop equipment required

• Engine Support Bridge10-222A
• Engine Support - Bracket w/Spindle and hook10-222A/10
• Engine/Gearbox Support Shackle (2 pc.)10-222A/12
• Engine Support Bridge - Engine Support 1910-222A/19
• Engine Support Bridge - Sub-frame Adapter10-222A/22
• Bracket - Multiple Use30-211A

Fig 3: Special Tools And Workshop Equipment Required

Courtesy of AUDI OF AMERICA, LLC

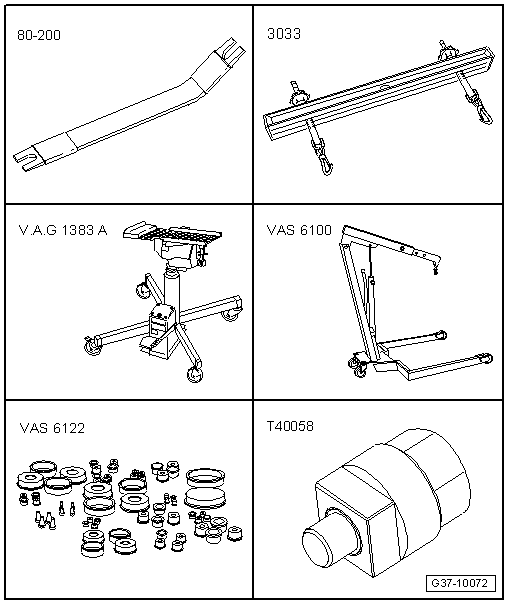

Special tools and workshop equipment required

• Pry Lever - Rmv Outside Mirror80-200
• Lifting Tackle3033
• Engine/Gearbox JackVAG1383A
• Shop CraneVAS6100
• Engine Bung SetVAS6122
• Crankshaft SocketT40058

Special tools and workshop equipment required

• Puller - Unit InjectorT10055
  Fig 4: Identifying Puller T10055

  Courtesy of AUDI OF AMERICA, LLC
• Seal Installer - Output Shaft Oil SealT10180
  Fig 5: Identifying Press Tool For Shaft Seal T10180

  Courtesy of AUDI OF AMERICA, LLC
• Seal Installer - Output Shaft Oil SealT10186
  Fig 6: Identifying Sleeve For Shaft Seal T10186

  Courtesy of AUDI OF AMERICA, LLC
• Socket And KeyT40031
  Fig 7: Identifying Socket And Key T40031

  Courtesy of AUDI OF AMERICA, LLC
• Engine Support Basic SetT40091
  Fig 8: Engine Support Basic Set T40091

  Courtesy of AUDI OF AMERICA, LLC
• Engine Support Supplement SetT40093
  Fig 9: Engine Support Supplement Set T40093

  Courtesy of AUDI OF AMERICA, LLC
• Gearbox SupportT40173
  Fig 10: Gearbox Support T140173

  Courtesy of AUDI OF AMERICA, LLC
• Hose Clip PliersVAG1275A
  Fig 11: Hose Clamp Pliers VAG 1275

  Courtesy of AUDI OF AMERICA, LLC
• Used Oil Collection And Extraction UnitSMN372500
• Depth GaugeVAS6082
  Fig 12: Identifying Depth Gauge VAS 6082

  Courtesy of AUDI OF AMERICA, LLC
• Oil FillerVAS6262A
  Fig 13: Adapter For Oil Filling VAS 6262 A

  Courtesy of AUDI OF AMERICA, LLC
• If necessary, Oil Filler - Adapter 6VAS6262/6

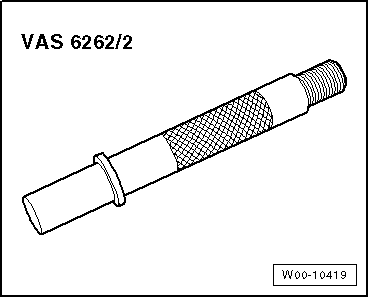

• Oil Filler - Adapter 2VAS6262/2
  Fig 14: Identifying Special Tool -- VAS 6262/2

  Courtesy of AUDI OF AMERICA, LLC
• Hose Clip PliersVAS6362
  Fig 15: Clamp Pliers VAS 6362

  Courtesy of AUDI OF AMERICA, LLC

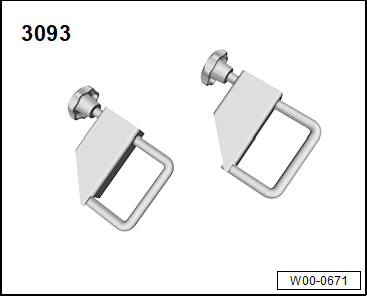

• Hose Clamps - Up To 40mm3093
  Fig 16: Hose Clamps 3093

  Courtesy of AUDI OF AMERICA, LLC
• Hose Clamps - Up To 25mm3094
  Fig 17: 3094 Hose Clamps

  Courtesy of AUDI OF AMERICA, LLC
• Not illustrated:
• Brake Line Tool Kit - Pipe CutterVAS6056/2
