Q7 TDI Premium Plus
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Connector End Views
>>
Engine Control Module (ECM) Connector End View (J623, T60, T94)
Engine Control Module (ECM) Connector End View (J623, T60, T94)

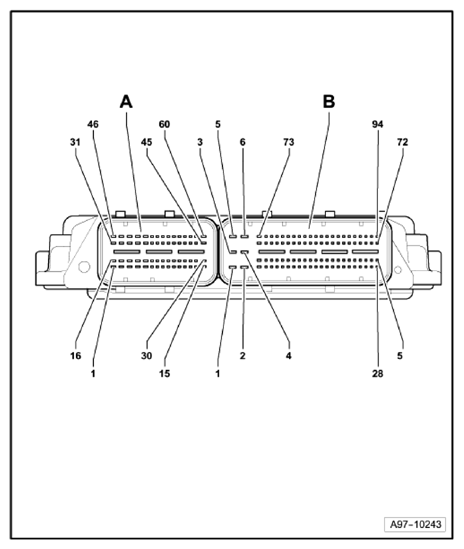

Fig 1: Engine Control Module (ECM) Connector End View (J623, T60, T94)
Courtesy of AUDI OF AMERICA, LLC
A
60-Pin Connector -T60-, black
B
94-Pin Connector -T94-, black
