Special Tools

Fig 1: Identifying Special Tools - Engine, Securing To Assembly Stand

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Lifting Tackle 3033
• Engine And Transmission Holder VAS6095 with bracket for Engine/Transmission Holder - V6 TDI Bracket VAS6095/1-11
• Shop Crane VAS6100
• Lift Arm Extension VAS6101

Fig 2: Identifying Special Tools - Engine, Removing

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Pry Lever 800-200
• Used Oil Collection and Extraction Unit SMN372500
• Step Ladder VAS5085
• Engine Bung Set VAS6122
• Scissor Lift Table VAS6131B with Scissor Lift Table - Audi Set VAS6131/10, Scissor Lift Table - A8 Set VAS6131/11, Scissor Lift Table - Q7 Set VAS6131/13 and Scissor Lift Table - Audi Set - Mounting Pin VAS6131/10-2 quantity: 3
• Shop Crane - Drip Tray VAS6208

Special tools and workshop equipment required

• Locking Pin T10060A

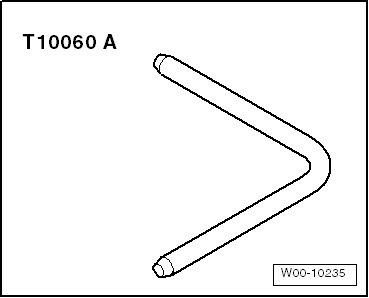

  Fig 3: Locking Pin T10060 A

  Courtesy of AUDI OF AMERICA, LLC
• Puller - Ball Joint T10187
  Fig 4: Ball Joint Puller T10187

  Courtesy of AUDI OF AMERICA, LLC
• Torx Socket - T60 T40087
  Fig 5: Torx Socket - T60 T40087

  Courtesy of AUDI OF AMERICA, LLC
• Crankshaft Turning Tool T40257
  Fig 6: Crankshaft Turning Tool T40257

  Courtesy of AUDI OF AMERICA, LLC
• Wrench - 21mm T40263
  Fig 7: Wrench - 21mm T40263

  Courtesy of AUDI OF AMERICA, LLC
• Hose Clip Pliers VAS6362
  Fig 8: Hose Clip Pliers VAS6362

  Courtesy of AUDI OF AMERICA, LLC
• Engine and Gearbox Jack VAS6931
  Fig 9: Engine & Transmission Jack VAG 1383 A

  Courtesy of AUDI OF AMERICA, LLC
• Engine Support Bridge 10-222A
  Fig 10: Engine Support Bridge 10 - 222 A

  Courtesy of AUDI OF AMERICA, LLC
• Engine Support Bridge - Sub-Frame Adapter 10-222A/22

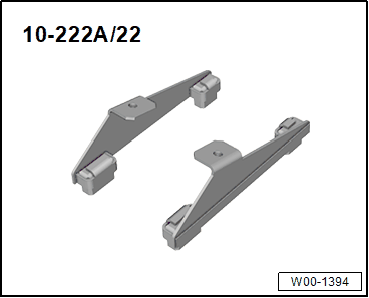

  Fig 11: Engine Support Bridge - Sub-Frame Adapter 10-222A/22

  Courtesy of AUDI OF AMERICA, LLC
• Bracket - Multiple Use 30-211A
  Fig 12: Bracket - Multiple Use 30-211A

  Courtesy of AUDI OF AMERICA, LLC
• Lifting Tackle 3033
  Fig 13: Lifting Tackle 3033

  Courtesy of AUDI OF AMERICA, LLC
• Hose Clamps - Up To 25mm 3094
  Fig 14: Hose Clamps - Up To 25mm 3094

  Courtesy of AUDI OF AMERICA, LLC
• Tools not illustrated
• Adapter T40314
