Towing Recognition Control Module Connector End View (J345, T16d, T12d, T12z)
Towing Recognition Control Module Connector End View (J345, T16d, T12d, T12z)

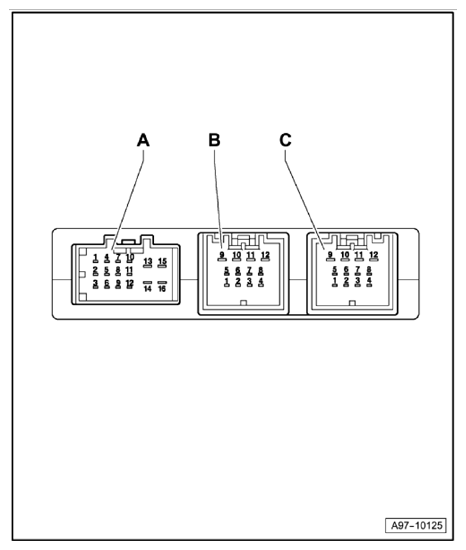

Fig 1: Towing Recognition Control Module Connector End View (J345, T16d, T12d, T12z)
Courtesy of AUDI OF AMERICA, LLC
A
16-Pin Connector, black-T16d-
B
12-Pin Connector, red -T12d-
C
12-Pin Connector -T12z-
