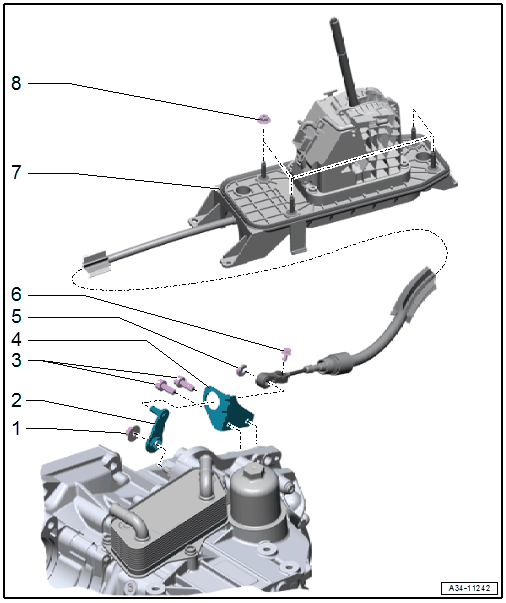

Overview - Selector Mechanism
WARNING:
There is a risk of injury and accident from accidentally engaging a gear when the engine is running.
- Before work is done with the engine running, move the selector lever into "P" and press the parking brake button to engage the electromechanical parking brake.
- Nut
- 20 Nm
- Selector Lever
- Bolts
- 20 Nm
- Cable Mounting Bracket
- Lock Washer
- Replace
- Bolt
- 12 Nm
- Selector Mechanism Function Unit
- With integrated Selector Lever -E313- with Selector Lever Sensor System Control Module -J587-, Selector Lever Park Position Lock Switch -F319- and Shift Lock Solenoid -N110-
- Check using Guided Fault Finding , refer to Vehicle Diagnostic Tester
- The Selector Lever -E313- with Selector Lever Sensor System Control Module -J587-, Selector Lever Park Position Lock Switch -F319- and Shift Lock Solenoid -N110- can be replaced with the shift mechanism function unit only, refer to SELECTOR MECHANISM, REMOVING AND INSTALLING
- Selector lever cable can only be replaced with the selector mechanism, refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .
- Do not lubricate the selector lever cable
- Emergency Release from P, refer to EMERGENCY RELEASE FROM "P" .
- Gearshift Mechanism, Removing and Installing, refer to SELECTOR MECHANISM, REMOVING AND INSTALLING
- Nut
- 8 Nm
- Quantity: 4
- For selector mechanism to body
