ATF Cooler, Removing And Installing: Installing
Install in reverse order of removal. Note the following:
-- Install the ATF cooler and tighten it.

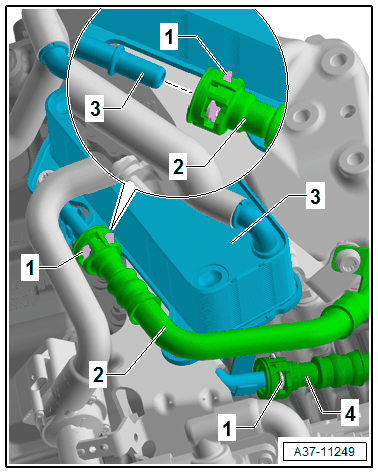

-- Coat the connections -3- on the ATF cooler with ATF.
-- Install the ATF lines -2 and 4- until stop and push down the clip -1-.
-- Pull on the ATF line to make sure it is secure.
-- Install the coolant hose on the ATF cooler and secure using the hose clamp -arrows-. Remove the Hose Clamps - Up To 25mm:3094 .
-- Install the battery tray and the battery, refer to BATTERY TRAY, REMOVING AND INSTALLING, VERSION 1 or BATTERY TRAY, REMOVING AND INSTALLING, VERSION 2 , also see OVERVIEW - BATTERY, BATTERY IN LUGGAGE COMPARTMENT .
-- Install the air filter housing, refer to OVERVIEW - AIR FILTER HOUSING (2.0L 4V TFSI Engine: EA 888 Generation II, As of 01/2018) or OVERVIEW - AIR FILTER HOUSING (2.0L 4V TFSI Engine; EA 888 Generation II, As of 09/2016). (For Air Filter Housing 2.0L 4V TFSI Engine; EA 888 Generation III, As of 12/2017, information not available). .
-- Observe measures after connecting the battery, refer to CONNECTING (Battery in Engine Compartment), or CONNECTING (Battery in Luggage Compartment) .
-- Check the coolant level, refer to COOLANT, DRAINING AND FILLING (2.0L 4V TFSI Engine; EA 888 Generation II, As of 01.2018), COOLANT, DRAINING AND FILLING (2.0L 4V TFSI Engine; EA 888 Generation III, As of 12.2017), or COOLANT, DRAINING AND FILLING /Check The Coolant Level (2.0L 4V TFSI Engine; EA 888 Generation II, As of 09.2016) .
-- ATF Level, Checking and Filling, refer to AUTOMATIC TRANSMISSION FLUID .
