Component Location Overview - Electrical Components
- Transmission Control Module -J217-
- The control module sends and receives data from the Data bus
- Installed location, removing and installing, refer to Fig 2
- Engine Control Module (ECM)
- The control module sends and receives data from the Data bus
- Component location overview and removing and installing, refer to Engine Control Module -J623-, REMOVING AND INSTALLING .
- Multifunction Transmission Range Switch -F125-
- Component location, refer to Fig 3
- Removing and installing, refer to MULTIFUNCTION TRANSMISSION RANGE SWITCH, REMOVING AND INSTALLING .
- Adjusting, refer to MULTIFUNCTION TRANSMISSION RANGE SWITCH, ADJUSTING .
- Valve Body
- Component location, refer to Fig 4
- Sensor Wiring Harness
- With Transmission Fluid Temperature Sensor -G93-
- Component location, refer to Fig 5
- Transmission Fluid Temperature Sensor -G93-
- Component location, refer to Fig 5
- Solenoid Valve Wiring Harness
- Component location, refer to Fig 6
- Shift Lock Solenoid -N110-
- Installed location: the shift lock solenoid is located in selector mechanism.
- Selector Mechanism
- With Tiptronic Switch -F189-, replace the selector mechanism if faulty
- Removing and installing, refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .
- Transmission Input Speed Sensor -G182-
- Component location, refer to Fig 7
- Removing and installing, refer to Transmission Input Speed Sensor -G182-, REMOVING AND INSTALLING .
- Transmission Output Speed Sensor -G195-
- Component location, refer to Fig 7
- Removing and installing, refer to Transmission Output Speed Sensor -G195-, REMOVING AND INSTALLING .
- Data Link Connector (DLC)
- Component location, refer to Fig 8
- Transmission Range Display -Y6-
- Component location, refer to Fig 9
- Removing and installing, refer to Selector Lever Transmission Range Position Display Unit -Y26-, REMOVING AND INSTALLING .

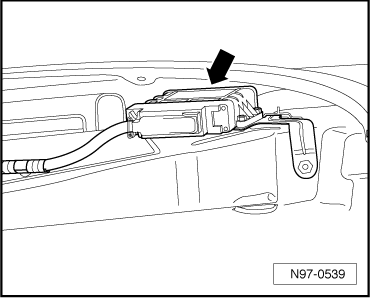

Installed location: the control module is located in front left wheel housing.
-- The wheel housing liner must be removed for removal.
Installed location: the multi-function switch is located on upper side of transmission.
Installed location: the valve body is bolted to underside of transmission housing and is covered by transmission oil pan.
The Solenoid Valve 1 -N88- and Solenoid Valve 2 -N89- as well as the Solenoid Valve 3 -N90-, Solenoid Valve 4 -N91-, Solenoid Valve 5 -N92-, Solenoid Valve 6 -N93-, Solenoid Valve 9 -N282- and Solenoid Valve 10 -N283- are secured on the valve body.

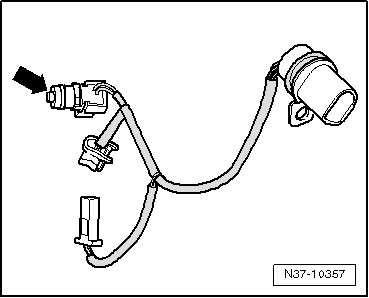

- With integrated Transmission Fluid Temperature Sensor -G93- -arrow-
Installed location: the wiring harness is secured to valve body in the transmission.

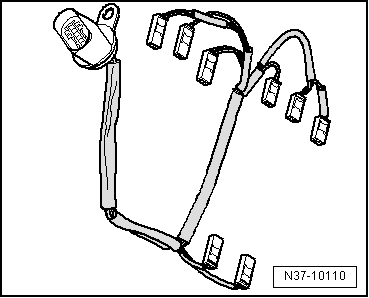

Installed location: the wiring harness is secured to valve body in the transmission.

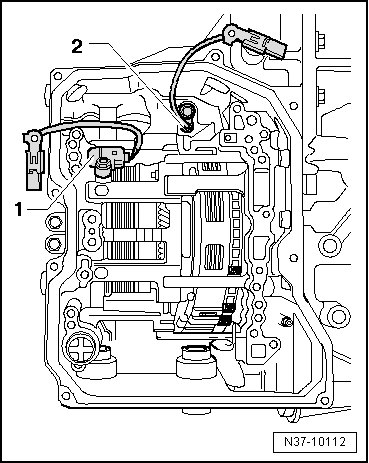

Installed location: the sensors are installed above the valve body in the transmission housing.
1 - Transmission Input Speed Sensor -G182-
2 - Transmission Output Speed Sensor -G195-
See Transmission Input Speed Sensor -G182-, REMOVING AND INSTALLING
See Transmission Output Speed Sensor -G195-, REMOVING AND INSTALLING
Installed location: the DLC -arrow- is located under left driver storage compartment

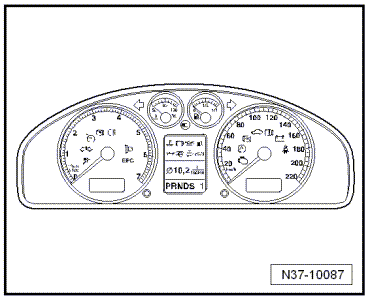

Component location: inside the instrument cluster
