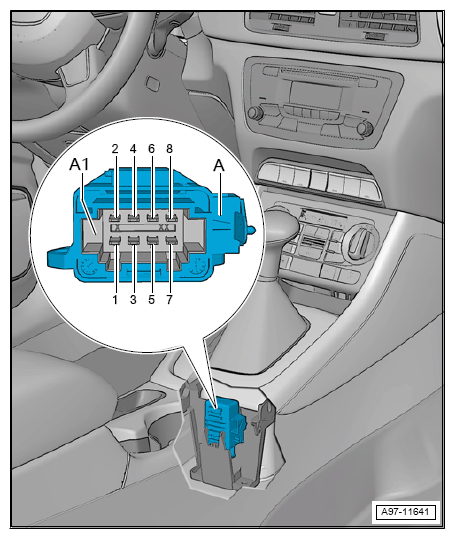

Front Heated Seats Control Module -J774- Location

  1. A  - Front Heated Seats Control Module -J774-
  2. A1  - 8-Pin Connector -T8Z-, Black
G12775351Courtesy of AUDI OF AMERICA, LLC
