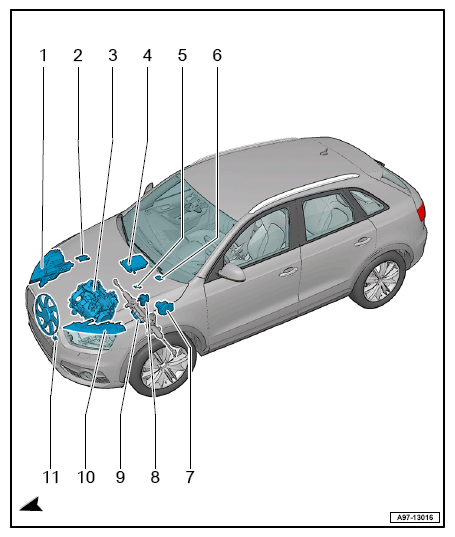

Vehicle Front Modules Overview
- 1 - Right Headlamp Power Output Stage -J668-
- 1 - Right Daytime Running Lamp and Parking Light Control Module -J861-
- 2 - → "NOX SENSOR CONTROL MODULE J583 "
- 3 - Direct Shift Gearbox (DSG) Mechatronic -J743-
- 4 - → "ENGINE CONTROL MODULE (ECM) J623 "
- 5
- → "BATTERY MONITORING CONTROL MODULE J367 "
- Only models with battery in engine compartment
- For models with battery in luggage compartment, see Component Locations, Vehicle Rear Modules
- 6 - Wiper Motor Control Module -J400-
- 7 - → "ABS CONTROL MODULE J104 "
- 8 - → " VACUUM PUMP RELAY J57 "
- 9 - → "POWER STEERING CONTROL MODULE J500 "
- 10 - Left Headlamp Power Output Stage -J667-
- 10 - Left Daytime Running Lamp and Parking Light Control Module -J860-
- 11 - Coolant fan control module -J293-
