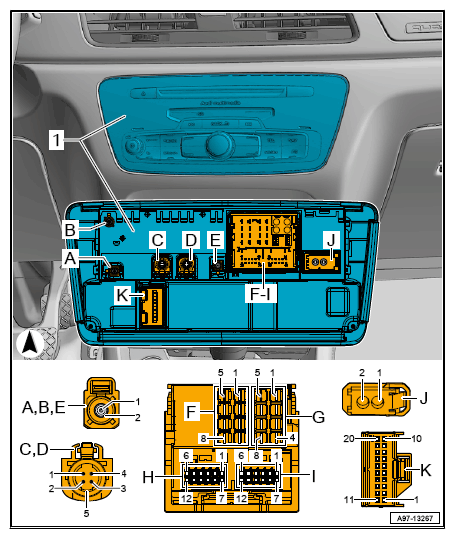

Control Module For Information Electronics 1 -J794
- 1 - Control Module for Information Electronics 1 -J794-
- A - Double Connector -T2X-, Blue
- B - Double Connector -T2W-, Purple
- C - 4-Pin Connector -T4U-, Yellow
- D - 4-Pin Connector -T4Al-, Gray/Blue
- E - Double Connector -T2Z-, Green
- F - 8-Pin Connector -T8Ao-, Black
- G - 8-Pin Connector -T8Ah-, Brown
- H - 12-Pin Connector -T12K-, Green
- I - 12-Pin Connector -T12X-, Blue
- J - Double Connector -T2Di-, Black
- K - 20-Pin Connector -T20K-, Red
