Wiring Diagrams
>>
Electrical Components Locations & Connector End Views -- Q3
>>
Comp. LOC. Vehicle Front Modules
>>
Abs Control Module J104
>>

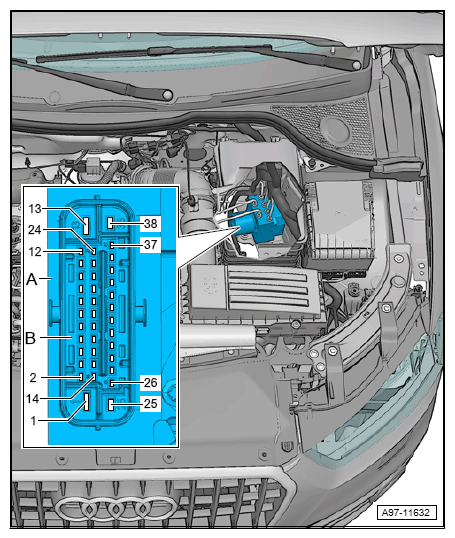

Abs Control Module -J104-, Connector View, (38-Pin) Through October 2014
Abs Control Module -J104-, Connector View, (38-Pin) Through October 2014
38-PIN CONNECTOR -T38A-
A1
- 38-Pin Connector -T38A-, Brown
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
