Vehicle Electrical System Control Module -J519- Connector Views

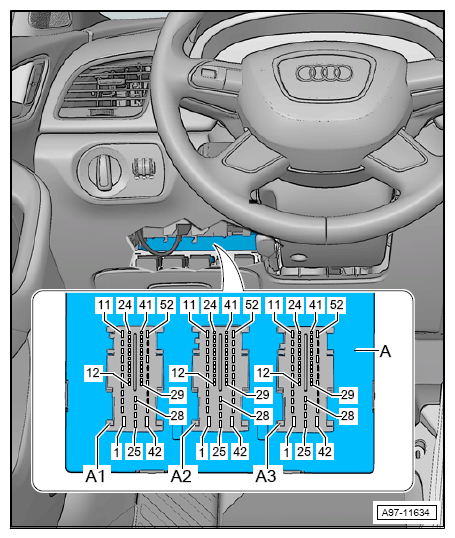

52-PIN CONNECTOR -T52A-/52-PIN CONNECTOR -T52B-/52-PIN CONNECTOR -T52C-

  1. A1  - 52-Pin Connector -T52A-, Black
  2. A2  - 52-Pin Connector -T52B-, Natural
  3. A3  - 52-Pin Connector -T52C-, Brown
G12775364Courtesy of AUDI OF AMERICA, LLC
