Electrical Components Locations & Connector End Views -- Q3
>>
Comp. LOC. Vehicle Cabin Modules
>>
Instrument Cluster Control Module J285
>>

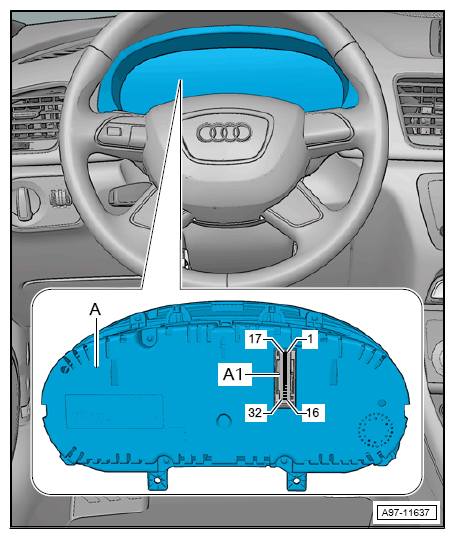

Instrument Cluster Control Module -J285- Connector Views
Instrument Cluster Control Module -J285- Connector Views
32-PIN CONNECTOR -T32-
A1
- 32-Pin Connector -T32-, Blue
Courtesy of AUDI OF AMERICA, LLC
