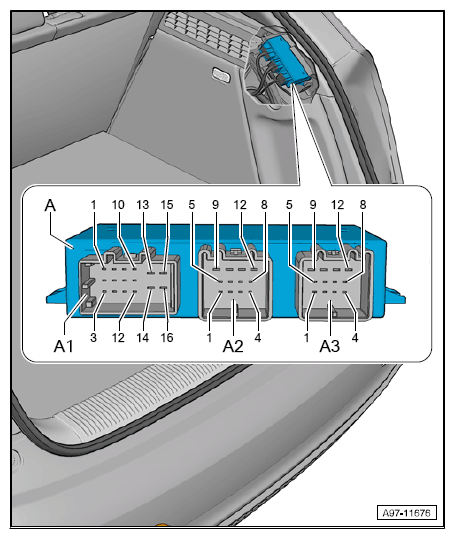

Towing Recognition Control Module -J345-, Connector View

16-PIN CONNECTOR -T16L-/12-PIN CONNECTOR -T12B-/12-PIN CONNECTOR -T12C-

  1. A1  - 16-Pin Connector -T16L-, Black
  2. A2  - 12-Pin Connector -T12B-, Red
  3. A3  - 12-Pin Connector -T12C-, Blue
G12775411Courtesy of AUDI OF AMERICA, LLC
