Internet Access Control Module -J666- Connector View

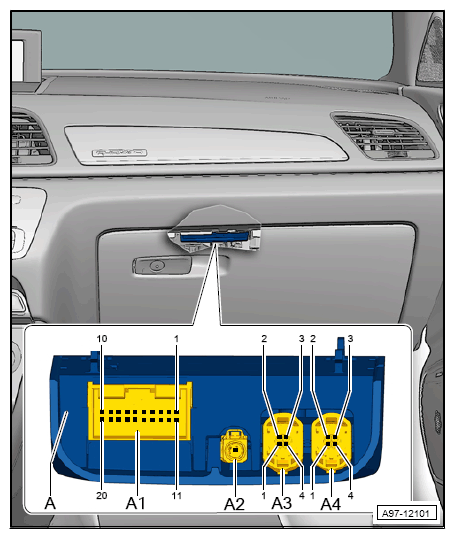

20-PIN CONNECTOR -T20G-/DOUBLE CONNECTOR -T2AF-/4-PIN CONNECTOR -T4O-/4-PIN CONNECTOR -T4N-

  1. A1  - 20-Pin Connector -T20G-, Black
  2. A2  - Double Connector -T2Af-, Beige
  3. A3  - 4-Pin Connector -T4O-, Black
  4. A4  - 4-Pin Connector -T4N-, Leaf-Green
G12775383Courtesy of AUDI OF AMERICA, LLC
