Control Module For Emergency Call Module And Communication Unit - J949

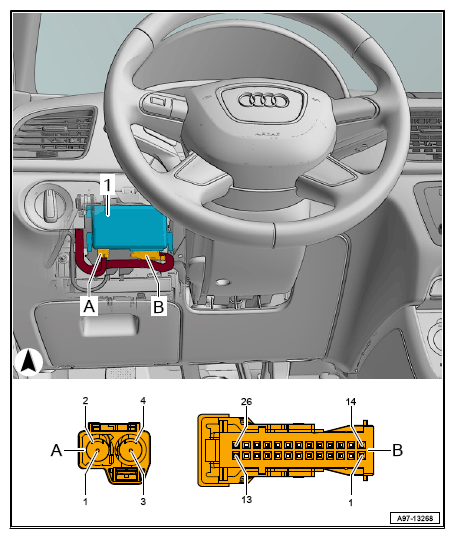

  1. 1  - Control Module For Emergency Call Module And Communication Unit -J949-
  2. A  - 4-Pin Connector -T4Cx-, Purple
  3. B  - 26-Pin Connector -T26D-, Black
G12775366Courtesy of AUDI OF AMERICA, LLC
