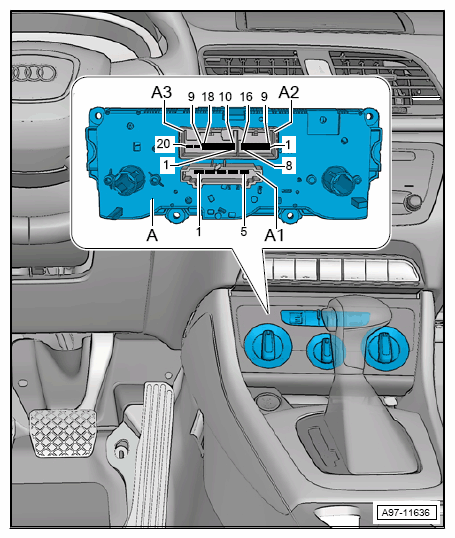

A/C Control Module -J301- Connector Views

5-PIN CONNECTOR -T5E-/16-PIN CONNECTOR -T16O-/20-PIN CONNECTOR -T20B-

  1. A1  - 5-Pin Connector -T5E-, Black
  2. A2  - 16-Pin Connector -T16O-, Black
  3. A3  - 20-Pin Connector -T20B-, Black
G12775360Courtesy of AUDI OF AMERICA, LLC
