External Audio Source Connection 2 -R321-, REMOVING AND INSTALLING: Removing

The External Audio Source Connection 2 -R321- -2- is installed from behind in the rear center armrest storage compartment -1-.

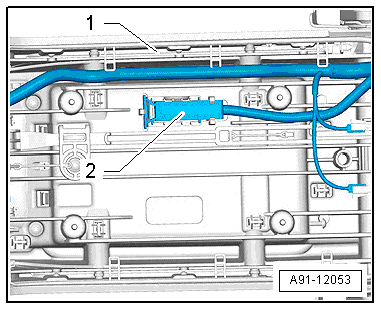

Fig 1: Identifying Rear Center Armrest Storage Compartment -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear center armrest. Refer to STORAGE COMPARTMENT IN CENTER ARMREST .

-- Remove the External Audio Source Connection 2 -R321- -2- from the center console -1-.

Fig 2: Identifying Rear Center Armrest Storage Compartment -1-

Courtesy of AUDI OF AMERICA, LLC
