Airbag Control Module-J234- Connector Views

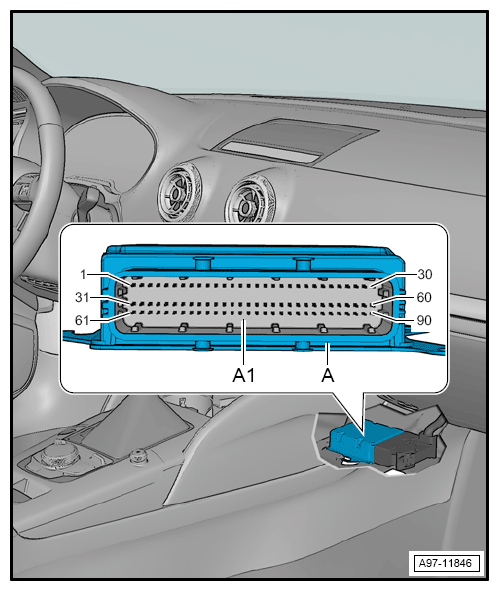

  1. 90-Pin Connector -T90-
  2. A1  - 90-Pin Connector -T90-, Yellow
G12759780Courtesy of AUDI OF AMERICA, LLC
