Electrical Components Locations & Connector End Views -- (A3)
>>
Comp. LOC. Vehicle Cabin Modules
>>

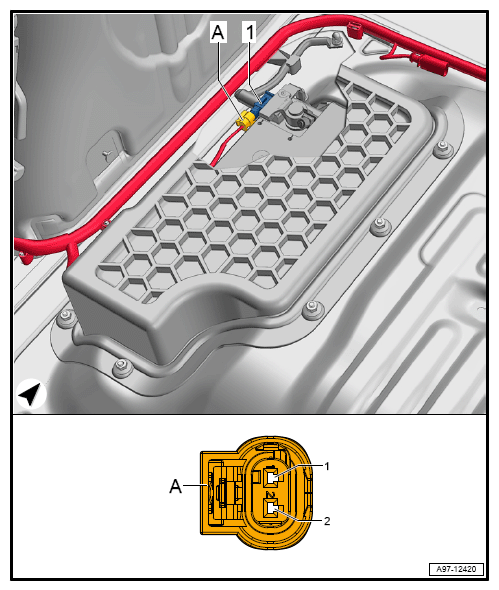

Battery Monitoring Control Module -J367-
>>
Battery Monitoring Control Module -J367- Connector Views
Battery Monitoring Control Module -J367- Connector Views
Double Connector -T2FK-
A
- Double Connector -T2FK-, Black
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
