Final Drive Identification
- The >>all wheel drive clutch<< is installed in the final drive.
- The final drive and >>all wheel drive clutch<< have separate oil circuits.
- The final drive is equipped with the >>All Wheel Drive Clutch Generation V<<.
Rear final drive allocation
Rear Final Drive -0CQ-

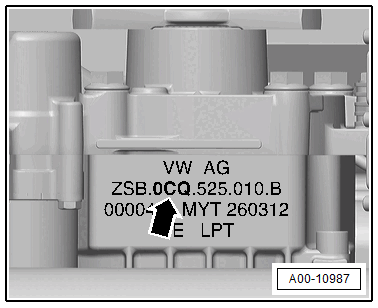

- The code -arrow- on the >>bottom<< of the final drive identifies which final drive is installed.

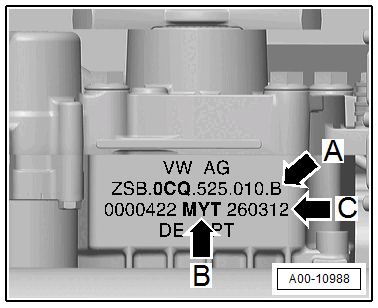

Example of the code on the rear final drive "0CQ".
-Arrow A- final drive part number
-Arrow B- final drive code
-Arrow C- Final drive production date
- If there are no codes -arrow B- present, then use the part number -arrow A- for the allocation. Refer to the Parts Information.
Example:
| 0CQ.525.010.B | MYT | 26 | 03 | 12 |
|---|---|---|---|---|
| I | I | I | I | I |
| I | I | I | I | I |
| Part Number | Codes | Day | Month | Production year -2012- |
Additional data depends on the manufacturing.
