Overview - Power Steering Pump, Vehicles With 6-Cylinder Diesel Engine, Vehicles With Dynamic Steering

Power Steering Pump, Removing and Installing, 6-Cylinder Diesel Engine, Vehicles without Dynamic Steering. Refer to POWER STEERING PUMP, REMOVING AND INSTALLING, 6-CYLINDER DIESEL ENGINE, VEHICLES WITH DYNAMIC STEERING .

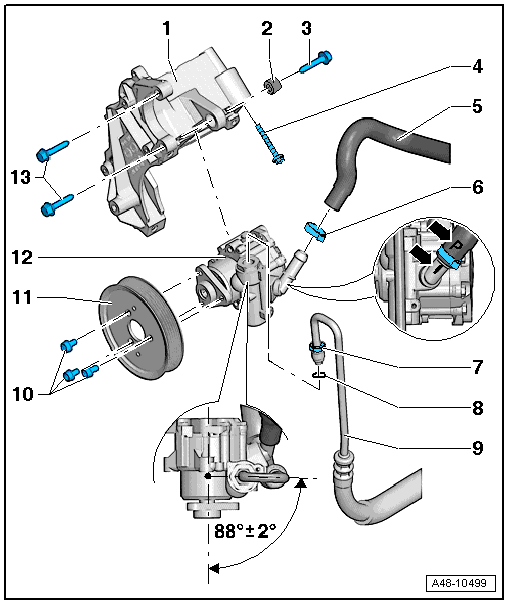

Power Steering Pump Assembly Overview

NOTE:

Always replace seals.

Do not reuse fluid you have drained.

Only use Hydraulic Fluid.

Courtesy of AUDI OF AMERICA, LLC

Bracket
Sleeve
- Drive the sleeve back slightly to install the power steering pump.
Bolt
- 25 Nm
Bolt
- 25 Nm
Intake Hose
- The "P" marking on the evacuation hose -arrow- must align with the formed seam -arrow- on the power steering pump.
Clamp
- Tension using Hose Clip Pliers VAG1275A
- Always replace if removed
Union Nut
- 38 Nm
Seal
- Always replace if removed
Pressure Line
CAUTION:
- Insert the pressure line completely when installing.
- Note the installation position: the angle between the line connection and the power steering pump axle must be approximately 88°.
- depending on the version, also mounted to the A/C compressor
Bolt
- 25 Nm
Belt Pulley
- Different versions: with and without a hole for counter-holding with a Wrench - Pin Type 3212
- Depending on the version, use either a Wrench - Pin Type 3212 or Counterhold - Kit - Multiple Use T10172 with Counterhold - Kit - Adapter 5 T10172/5.
Power Steering Pump
- Allocate correct version.
- Fill with Hydraulic Fluid before installing
- Delivery pressure, checking. Refer to POWER STEERING PUMP, CHECKING DELIVERY PRESSURE, 6-CYLINDER DIESEL ENGINE, VEHICLES WITH AND WITHOUT DYNAMIC STEERING .
- Removing and installing. Refer to POWER STEERING PUMP, REMOVING AND INSTALLING, 6-CYLINDER DIESEL ENGINE, VEHICLES WITH DYNAMIC STEERING .
- Bleed the steering. Refer to STEERING, BLEEDING AFTER REPLACING .
- Check hydraulic fluid level. Refer to POWER STEERING FLUID LEVEL, CHECKING .
- Steering System, checking for leaks. Refer to STEERING, CHECKING FOR LEAKS .
Bolt
- 25 Nm
