Rear View Camera System Control Module Connector End View (J772, T8d, T2e)

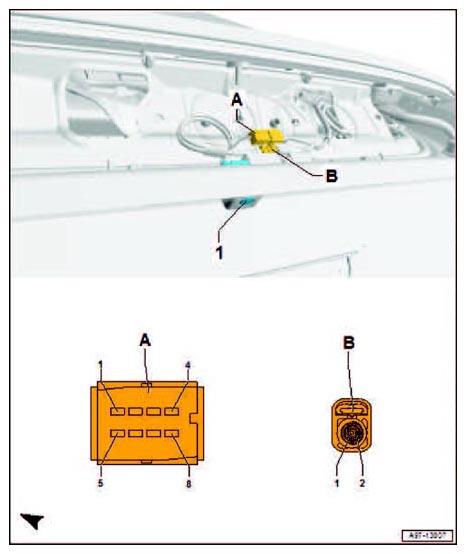

Fig 1: Rear View Camera System Control Module Connector End View (J772, T8d, T2e)

Courtesy of AUDI OF AMERICA, LLC

1	Rear View Camera System Control Module -J772-
A	8-Pin Connector -T8d-, black
B	Double Connector -T2e-, grey
	to Information electronics control module 1 -J794-

-T8d- (A)	Designation
1	Terminal 30, from Fuse panel C -SC-
2
3
5	Terminal 31, to 729 Ground connection on left rear wheel housing 1) 730 Ground connection 1 on right rear wheel housing 2)
6
7
4	Infotainment CAN-Bus High to B415 Infotainment CAN-Bus High Connection 1 (in main wiring harness) 1) B416 Infotainment CAN Bus high connection 2 (in main wiring harness) 2)
8	Infotainment CAN-Bus Low to B421 Infotainment CAN-Bus Low connection 1 (in main wiring harness) 1) B422 Infotainment CAN Bus low connection 2 (in main wiring harness) 2)
