Battery Monitoring Control Module Connector End View (J367, T2a)

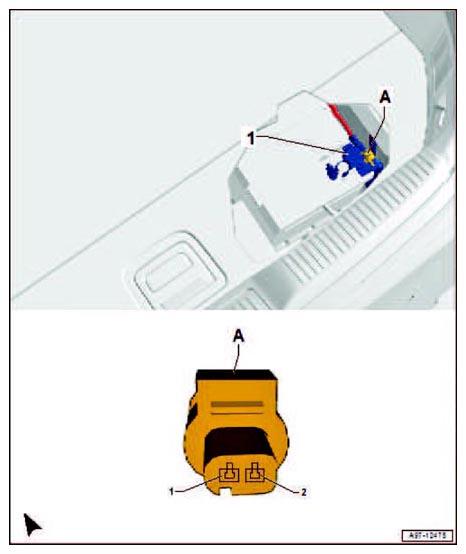

Fig 1: Battery Monitoring Control Module Connector End View (J367, T2a)

Courtesy of AUDI OF AMERICA, LLC

1	Battery Monitoring Control Module -J367-
A	Double Connector -T2a-, yellow

-T2a- (A)	Designation
1	LIN-Bus, to B710 LIN-Bus Connection 5 (in main wiring harness) Data Bus On Board Diagnostic Interface -J533-
2	Connector B1, main fuse carrier on battery -A- Terminal 30
