Transmission, Transporting

Special tools and workshop equipment required

Hook And Support Tool 3311

Fig 1: Hook And Support Tool 3311 With Bolt 3311/1
Courtesy of AUDI OF AMERICA, LLC

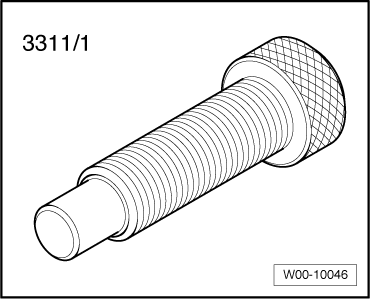

Bolt 3311/1

Fig 2: Identifying Bolt 3311/1
Courtesy of AUDI OF AMERICA, LLC
Shop Crane VAS6100

Fig 3: Identifying Shop Crane VAS 6100
Courtesy of AUDI OF AMERICA, LLC

Procedure

CAUTION:

Transmission components could be damaged if they are not set down correctly.

Fig 4: Support Tool 3311

Courtesy of AUDI OF AMERICA, LLC

WARNING:

An accident could result if the transmission is not secured correctly.

Exchange the bolt on the Hook and Support Tool 3311 for a new, longer bolt 3311/1.
This is the only way the transmission can be properly secured.

-- Secure the transmission on the Hook And Support Tool 3311 (use new longer bolts 3311/1).

-- The transmission can be lifted and transported with the Shop Crane VAS6100.

NOTE:

Ignore the holding plate VW309.
