Overview - Subframe Mount

Engine Mount

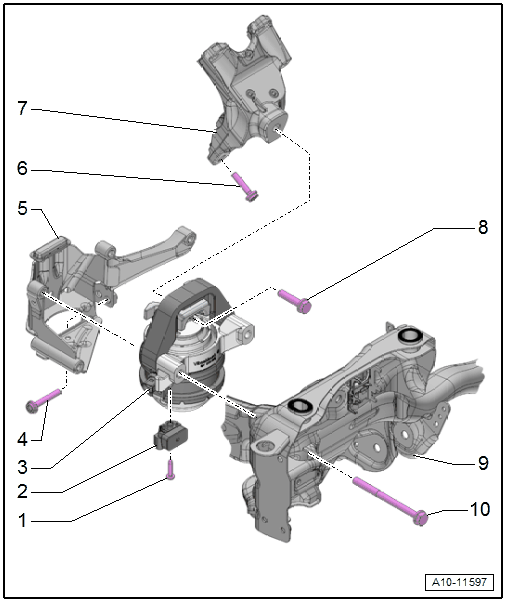

Fig 1: Engine Mount Overview

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • 6 Nm
2. Subframe Mount Sensor and Subframe Mount Actuator
   • Right: Subframe Mount Sensor 1 -G748- and Subframe Mount Actuator 1 -N513-
   • Left: Subframe Mount Sensor 2 -G749- and Subframe Mount Actuator 2 -N514-
   • Removing and installing, refer to SUBFRAME MOUNT SENSOR/ACTUATOR .
   • After installing perform the basic setting of the subframe mount adjustment see Vehicle Diagnostic Tester
3. Engine Mount
   • Removing and installing, refer to ENGINE MOUNT, REMOVING AND INSTALLING .
   • After installing perform the basic setting of the subframe mount adjustment see Vehicle Diagnostic Tester
4. Bolt
   • 20 Nm
5. Engine Mount Bracket
6. Bolt
   • 40 Nm
7. Engine Support
8. Bolt
   • 90 Nm +90°
   • Replacing
9. Subframe
10. Bolt
    • 55 Nm

Subframe Mount Control Module -J931-

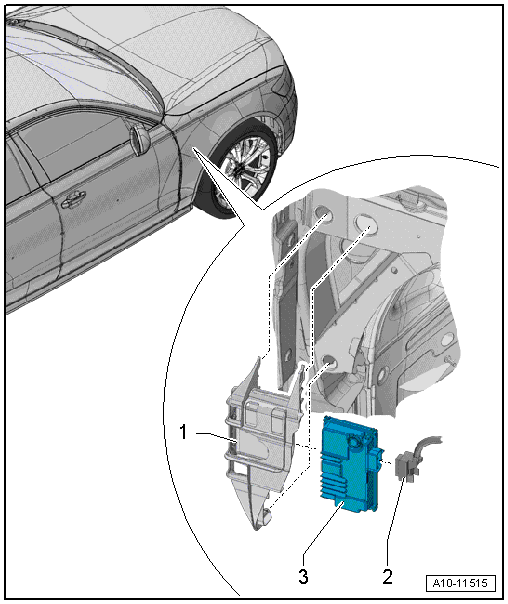

Fig 2: Identifying Subframe Mount Control Module -J931-

Courtesy of AUDI OF AMERICA, LLC

1. Bracket
2. Connector
3. Subframe Mount Control Module -J931-
   • Removing and installing, refer to SUBFRAME MOUNT CONTROL MODULE -J391-, REMOVING AND INSTALLING .
   • After replacing perform the basic setting of the subframe mount adjustment see Vehicle Diagnostic Tester

DSG Transmission Mount 0B5

Fig 3: Identifying DSG Transmission Mount 0B5 Overview

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • Tightening specification, refer to OVERVIEW - SUBFRAME MOUNT .
2. Tunnel Crossmember
   • Removing and installing, refer to OVERVIEW - SUBFRAME MOUNT .
3. Stop
   • For the transmission mount
4. Transmission Mount
   • Removing and installing, refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
5. Bolt
   • Tightening specification, refer to OVERVIEW - SUBFRAME MOUNT .
6. Nut
   • Tightening specification, refer to OVERVIEW - SUBFRAME MOUNT .
7. Bolt
   • Tightening specification, refer to OVERVIEW - SUBFRAME MOUNT .
8. Transmission Support
   • Removing and installing, refer to TRANSMISSION SUPPORT WITH TRANSMISSION MOUNT, REMOVING AND INSTALLING .
9. Bolt
   • Tightening specification, refer to OVERVIEW - SUBFRAME MOUNT .
10. Nut
    • Tightening specification, refer to OVERVIEW - SUBFRAME MOUNT .

Automatic Transmission Mount 0BK

Fig 4: Identifying Automatic Transmission Mount 0BK Overview

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • Tightening specification, refer to OVERVIEW - SUBFRAME MOUNT .
2. Tunnel Crossmember
   • Removing and Installing, refer to OVERVIEW - SUBFRAME MOUNT .
3. Stop
   • For the transmission mount
4. Transmission Mount
   • Removing and installing, refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
5. Bolt
   • Tightening specification, refer to OVERVIEW - SUBFRAME MOUNT .
6. Nut
   • Tightening specification, refer to OVERVIEW - SUBFRAME MOUNT .
7. Bolt
   • Tightening specification, refer to OVERVIEW - SUBFRAME MOUNT .
8. Transmission Support
   • Removing and installing, refer to TRANSMISSION SUPPORT WITH TRANSMISSION MOUNT, REMOVING AND INSTALLING .
9. Bolt
   • Tightening specification, refer to OVERVIEW - SUBFRAME MOUNT .
10. Nut
    • Tightening specification, refer to OVERVIEW - SUBFRAME MOUNT .
