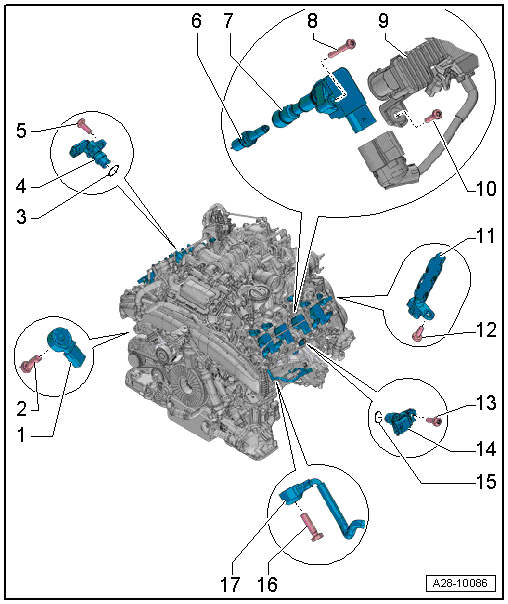

Overview - Ignition System
- Knock Sensor
- Cylinder bank 1 (right)
- Front Knock Sensor 1 -G61-
- Rear Knock Sensor 2 -G66-
- Removing and installing, refer to KNOCK SENSOR, REMOVING AND INSTALLING .
- Bolt
- 25 Nm
- Tightening specifications affect function of Knock Sensor (KS)
- O-Ring
- Replacing
- Camshaft Position Sensor
- Intake side Camshaft Position Sensor -G40-
- Removing and installing, refer to Camshaft Position Sensor -G40-, REMOVING AND INSTALLING .
- Exhaust side Camshaft Position Sensor 3 -G300-
- Removing and installing, refer to Camshaft Position Sensor 3 -G300-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Spark Plug
- Replacement interval, refer to Maintenance Tables.
- Tightening specification, refer to => 411.
- Ignition Coil
- Removing and installing, refer to IGNITION COILS WITH POWER OUTPUT STAGES, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Wiring Guide
- Bolt
- 5 Nm
- Engine Speed Sensor -G28-
- Removing and installing, refer to Engine Speed Sensor -G28-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Camshaft Position Sensor
- Intake side Camshaft Position Sensor 2 -G163-
- Removing and installing, refer to CAMSHAFT POSITION SENSORS -G163 - / - G301-, REMOVING AND INSTALLING .
- Exhaust side Camshaft Position Sensor 4 -G301-
- Removing and installing, refer to CAMSHAFT POSITION SENSORS -G163 - / - G301-, REMOVING AND INSTALLING .
- O-Ring
- Replacing
- Bolt
- 25 Nm
- Tightening specifications affect function of Knock Sensor (KS)
- Knock Sensor
- Cylinder bank 2 (left)
- Front Knock Sensor 3 -G198-
- Rear Knock Sensor 4 -G199-
- Removing and installing, refer to KNOCK SENSOR, REMOVING AND INSTALLING .
