Production Control Number (Pr Number) Explanation: Notes

The vehicle data plate documents which front/rear axle or tire pressure monitoring system is installed using the corresponding PR numbers.

There is a vehicle data label in the spare wheel well and also one in the customer Maintenance booklet.

Front/Rear Axle

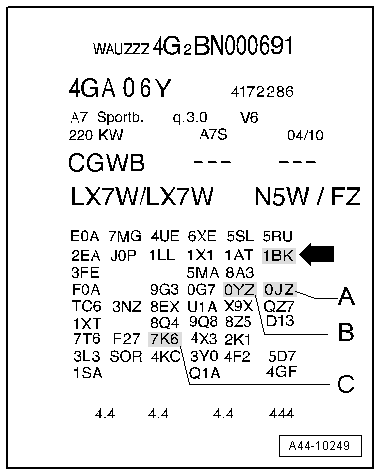

Fig 1: Vehicle Data Plate

Courtesy of AUDI OF AMERICA, LLC

The front/rear axle PR No. is in illustration -A and B-.

-- The front axle PR number is item -A-.

-- Item -B- shows PR number for rear axle

Use the PR number to find the correct shock absorber combination .

Suspension Versions

Fig 2: Vehicle Data Plate

Courtesy of AUDI OF AMERICA, LLC

The suspension version PR No. is in illustration -arrow-

In this example the vehicle has standard suspension 1BK installed.

1BA = Standard suspension

1BE = Sport suspension

1BB/1BR = Heavy duty suspension

1BK = Standard suspension air suspension

1BS = Heavy duty suspension air suspension

1BV = Sport suspension S line

1BY = allroad

2MA = RS suspension air suspension

2MB = Sport suspension air suspension

2MC = RS suspension
