Overview - Active Steering Control Module -J792-: Notes

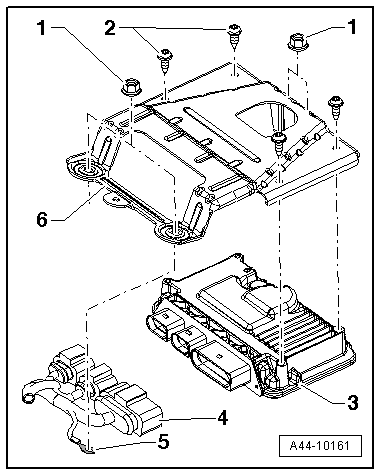

Fig 1: Identifying Nut -1-, Bolts -2-, Control Module -3-, Connector Wiring Harness -4-, Ground Wire -5- And Bracket -6-
GWWA44-10161Courtesy of AUDI OF AMERICA, LLC

1 -Nut, 2.5 Nm

2 - Bolt, 8 Nm

3 - Active Steering Control Module -J792-

4 - Connector, clipped to the wiring harness

5 - Ground (GND) Wire

6 - Bracket

Special tools and workshop equipment required
