Steering Angle Sensor -G85-, Removing And Installing: Removing
NOTE:
The steering wheel must be in its center position when removing and installing the Airbag Spiral Spring/Return Spring with Slip Ring -F138- (the vehicle wheels are in the straight ahead position).
-- Lower the steering wheel as far as possible.
-- Remove the driver airbag. Refer to DRIVER SIDE AIRBAG .
-- Remove the steering wheel. Refer to STEERING WHEEL, REMOVING AND INSTALLING .
-- Remove the steering column trim. Refer to STEERING COLUMN SWITCH MODULE UPPER TRIM .

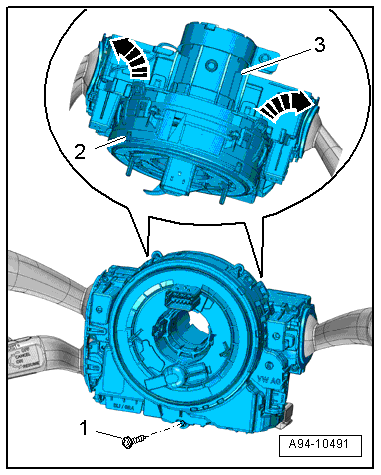

-- Remove the Airbag Spiral Spring/Return Spring with Slip Ring -F138- -2- from the switch module -3-. Refer to STEERING COLUMN SWITCH MODULE LOWER TRIM .
