Rear A/C Display Control Head -E265-, Removing And Installing: Removing

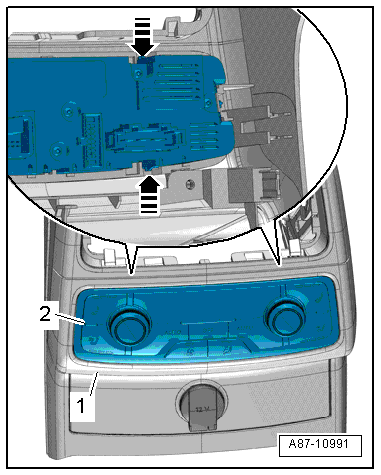

Fig 1: Rear A/C Display Control Head And Cover
GWWA87-10991Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear cover for the center console, refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLINGCenter Console .

-- Release the left and right tabs -arrows-.

-- Press the control head -2- out of the rear cover -1-.
