Transmission Control Module (TCM) -J217-

Component Location

NOTE:
  • Only Models With Automatic Transmission 09D And 0C8.
  • On vehicles with automatic 0AT and 0BQ the Transmission Control Module (TCM) -J217- is combined with the valve body Mechatronics. The Mechatronics is located in the automatic transmission.

Below Front Passenger's Seat -2-.

G12779644Courtesy of AUDI OF AMERICA, LLC

Connector

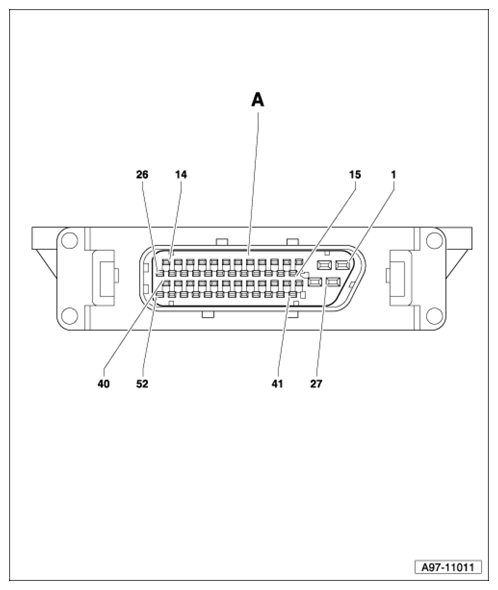

  1. 52-Pin Connector -T52-
G12779647Courtesy of AUDI OF AMERICA, LLC

Back To Overview  → COMP. LOC. CONTROL MODULES  .
