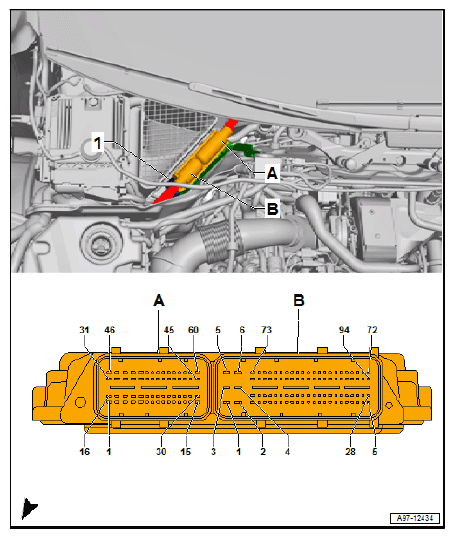

Engine Control Module (ECM) 2 -J624- With 154-Pin Connector

Component Location

In Plenum Chamber, Right -1-.

1. 1  - Engine Control Module (ECM) -J624-
2. 60-Pin Connector -T60-, Black
3. 94-Pin Connector -T94-, Black

Courtesy of AUDI OF AMERICA, LLC
