Driver's Door Control Module -J386-

Component Location

In Driver's Door -1-.

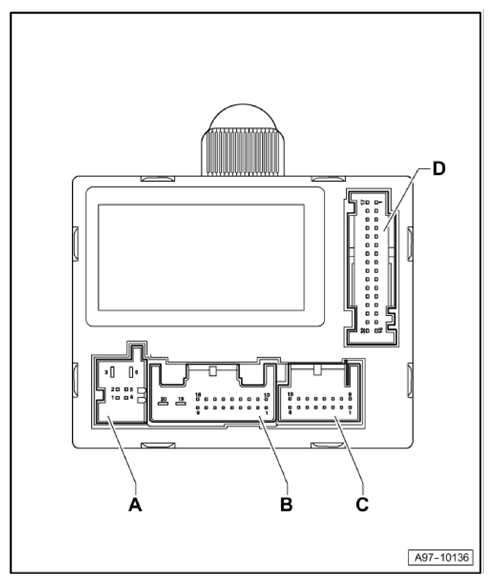

Pin Connectors

Courtesy of AUDI OF AMERICA, LLC

1. 6-Pin Connector -T6AC-, Black
2. 20-Pin Connector -T20L-, Black
3. 16-Pin Connector -T16I-, Black
4. 32-Pin Connector -T32F-, White

Courtesy of AUDI OF AMERICA, LLC
